Valve actuator limit switch LSN-4 series

IP67IP65corrosion-resistant

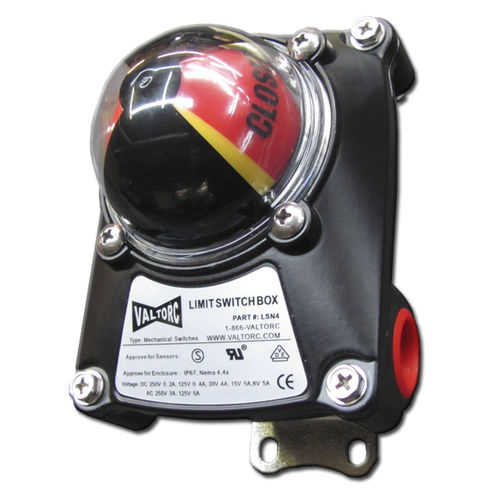

Limit Switch - Valve Position Monitor Valve position monitor and limit switch actuator accessories are made of a aluminum die cast body that has been powder coated for protection. 2x 1/2" conduit entries, NAMUR mounting as a standard and fully adjustable spring loaded cams. Corrosion resistance and durable. Series LSN-4 The valve position monitor and limit switch is a great addition to your actuated valve package. Easily determine the position of any valve setup with a quick glance on the industrial grade dome. Valve Position Indicator Limit Switch popular-badgeThe LSN4 limit switch is designed to integrate with the Valve actuator package with a variety of mounting options, internal switches choices and configurations. The high duty company body design is construction from industrial grade aluminum alloy. The dome position indicator is a high impact polly material which offers visual indication of valve position. Normal type, explosion proof and •Aluminum die cast body - powder coated for corrosion resistance •High quality polycarbonate dome for valve position viewing •Spring loaded cams are fully adjustable for setting and configuration •Special circuit board eliminates wiring from the limit switch to terminals •Protection against power spikes and short circuits •Two (2) 1/2" conduit entries •NAMUR standard mounting •IP65/IP67 weatherproof rating •Temperature range: 4F - 176F •Cable entry: 1/2" NPT (x2), M20x 1.5 (2 by adapter), 3/4" ET (2 by adapter)
