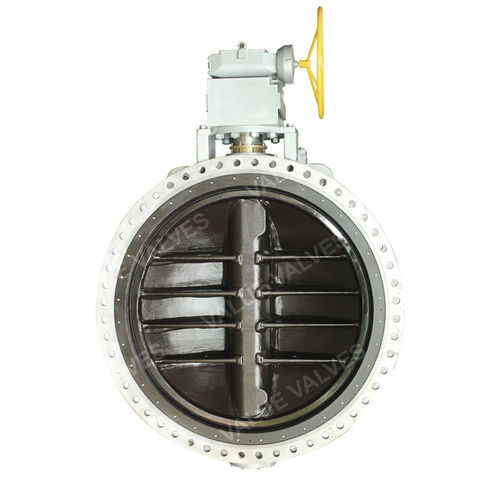

Butterfly valve VF-264
with handwheelfor waterrubber

butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
with handwheel
Media
for water
Body
double-flange, seat, rubber
Applications
flange, for water, for water treatment
Associated function
exhaust
Other characteristics
standard
DN

Max.: 2,600 mm
(102.362 in)

Min.: 350 mm
(13.78 in)

Temperature

Max.: 120 °C
(248 °F)

Min.: -20 °C
(-4 °F)

Description

1. It allows a 360° continuous sealing between body seat and disc seat. 2. It offers a long life service. 3. The rubber liner is tested by 20,000VDC of holiday test to make sure there is no pin hole exist. 4. The valve sizes 30” and up the seat ring could be replaced without remove the valve from pipeline. 5. Bi-direction tight shut off. Specifications: Body style: Flange Type Body shell thickness: AWWA C504, C516 Mounting: ISO5211 Design & Pressure：AWWA C504, C516 Face to Face：AWWA C504, C516 Inspection and Testing: AWWA C504, C516 Standard Marketing System: MSS-SP-25 (Other flange connection please contacts with Value Valves Co., Ltd.) *Technical information is only for reference. Value Valves Co., Ltd. reserves the right to change without previous notice.
