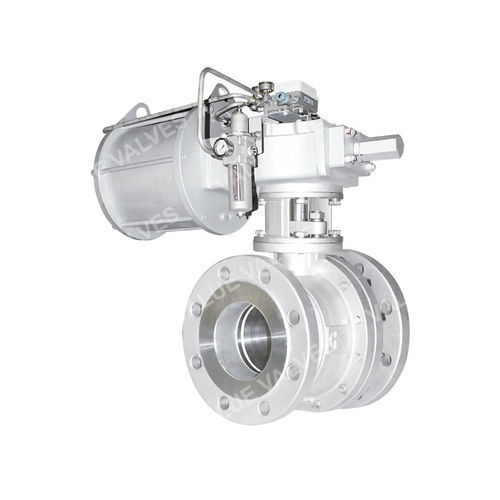

Ball valve VF-BF
hydraulicfor petroleumflange

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
hydraulic
Media
for petroleum
Applications
for the chemical industry, for the mining industry, flange
Other characteristics
ISO, ANSI, anti-static
DN

Max.: 300 mm
(11.811 in)

Min.: 15 mm
(0.591 in)

Temperature

Max.: 210 °C
(410 °F)

Min.: -29 °C
(-20 °F)

Description

Excellent shutoff design and unobstructed flow path. Ball valves are designed and equipped with blow out proof stem, lower and stable torque, and ISO 5211 mounting surface. Every ball valve has an independent tag-number to track the documents of materials, torque and inspection reports. Guaranty 100% hydraulic leakage test before release. Anti-Static design ball to stem and body. Fire safe design, bi-directional, two-piece split body, floating type. Specifications: Body Connection: Flange Type Body Shell Thickness: ASME B16.34 Mounting: ISO 5211 Design & Pressure: API 6D, API 608, ASME B16.34 Face to Face: ANSI B16.10 Inspection and Testing: API 6D, API 598 Leakage Class: ISO 5208 rate A Flange Drilling: ASME B16.5 150LB/300LB, JIS 10K/16K (Other flange connection please contacts with Value Valves Co., Ltd.) *Technical information is only for reference. Value Valves Co., Ltd. reserves the right to change without previous notice.
