Vertical baling press DP40M

front-loadingfor textilespit

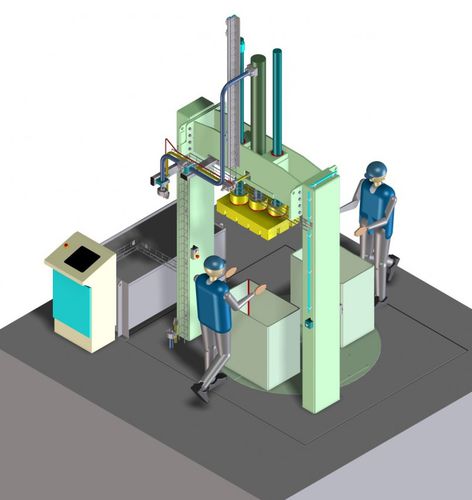

The manual swivel box pit press DP40M is an underground swivel box type press with a filling box and a pressing box. The loading of the filling box is done by 1 operator at a comfortable height of 800 mm. The finished bales come out at a comfortable height for wrapping and strapping. Capacity: 30 bales/ h with 2 operators Filling: Manually at comfortable height Pressing force: 40 tons Motor power: 22 kW Machine weight: 9 tons Box size (LxWxH) : 750 x 450 x 2000 mm Bale size (LxWxH) : 765 x 465 x 250-600 mm Bale weight: 45 to 100 kg # straps: 4 + 2
