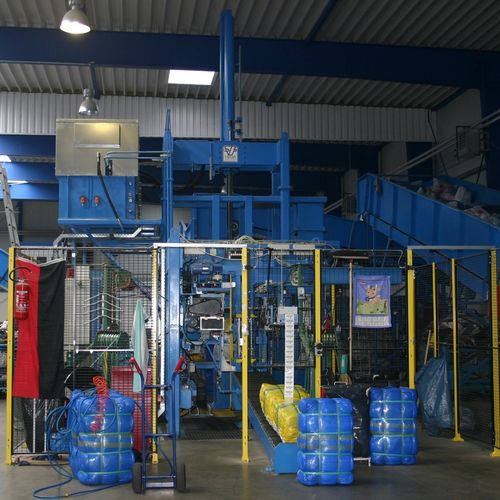

Semi-automatic baling press NDG, NDG-R, GD-R

verticalfront-loadingfor textiles

The automatic strapping system ASR2 is added to an (existing) NDG40. The purpose is to increase the capacity AND meanwhile reducing the labour cost. A capacity of 45 bales/hour with 1 operator on the press can be achieved on the condition that the feeding of the NDG-carts to the press is done by another person, or by means of a cart feeding system. The automatic strapping system ensures a fast and reliable PET strapping operation with very light strap, so at a low material cost. The strapping heads are very reliable and maintenance-friendly because of their small size for installation and removal. Capacity: 45 bales/ h with 1 press operator Filling: Automatically through NDG carts Pressing force: 40 tons Motor power: 37kW + 15 kW Machine weight: 12 tons + 5 tons Box size (LxWxH) : 750 x 450 x 1500 mm Bale size (LxWxH) : 765 x 465 x 250-600 mm Bale weight: 45 to 100 kg # straps: 4 + 2
