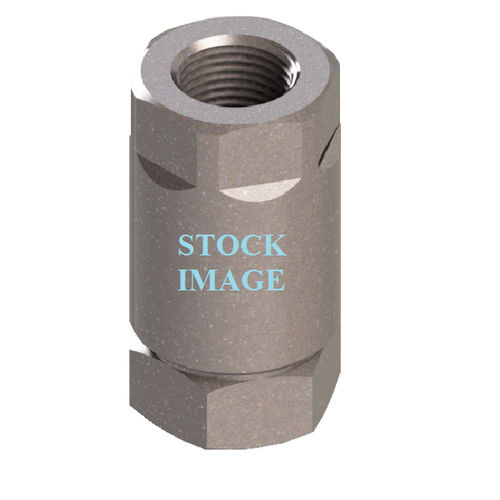

Female-female check valve U620 serieslow-pressurefor waterfor gas
Add to favorites
Compare this product
Characteristics
- Body
- female-female
- Applications
- low-pressure, for water, for gas
- Material
- stainless steel
- Other characteristics
- in-line, for high flow rates
- DN
Min.: 0.25 in
Max.: 2 in
- Pressure
800 psi
Description
"Economical high flow reverse check valve! The U620 series offers high flow, low cracking pressure, teflon seal, and is capable of handling applications up to 800 psi WOG (water, oil or gas)."
U620-2PP
1/4" FNPT x 1/4" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 3.5
Cracking Pressure
Currently Available .5
U620-3PP
3/8" FNPT x 3/8" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 3.5
Cracking Pressure
Currently Available .5
U620-4PP
1/2" FNPT x 1/2" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 5.2
Cracking Pressure
Currently Available .5
U620-6PP
3/4" FNPT x 3/4" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 10.0
Cracking Pressure
Currently Available .5
U620-8PP
1" FNPT x 1" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 15.0
Cracking Pressure
Currently Available .5
U620-10PP
1-1/4" FNPT x 1-1/4" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 24.5
Cracking Pressure
Currently Available .5
U620-12PP
1-1/2" FNPT x 1-1/2" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 35.2
Cracking Pressure
Currently Available .5
U620-16PP
2" FNPT x 2" FNPT
Max Pressure 800 psi
Orifice Size Consult Factory
Flow Coefficient: Cv: 52.0
Cracking Pressure
Currently Available .5
