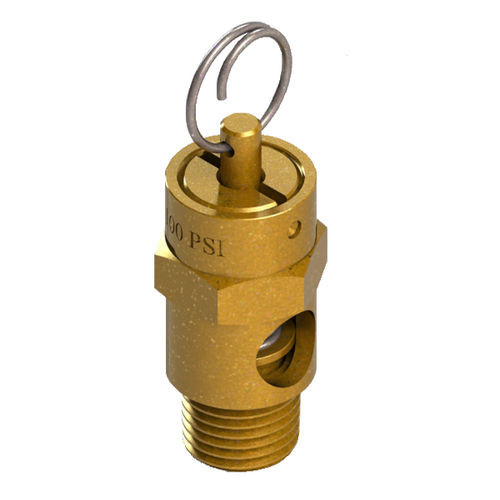

Brass safety relief valve U200C seriesthreadedstainless steel
Add to favorites
Compare this product
Characteristics
- Body material
- brass
- Other characteristics
- threaded, stainless steel
- Controlled pressure
Max.: 350 psi
Min.: 25 psi
- DN
0.13 in, 0.25 in, 0.38 in
Description
-Rated for ASME, NB, UV and CRN standards.
-Available with brass body and stainless steel spring.
-Unfired pressure vessel
-Pressure settings ranging from 80-225 psi (1/8" & 1/4" NPT) and 25-350 psi (3/8" NPT)
U200C-1M
1/8" MNPT x Vent
Max Pressure
Orifice Size.155
Flow Coefficient: Cv:Consult Factory
Cracking Pressure
Currently Available80-225, 5 psi increments
1/4" MNPT x Vent
Max Pressure
Orifice Size .157
Flow Coefficient: Cv: Consult Factory
Cracking Pressure
Currently Available 80-225, 5 psi increments
3/8" MNPT x Vent
Max Pressure
Orifice Size .250
Flow Coefficient: Cv: Consult Factory
Cracking Pressure
Currently Available 25-350, 5 psi increments
