Strainer
Add to favorites
Compare this product
Description

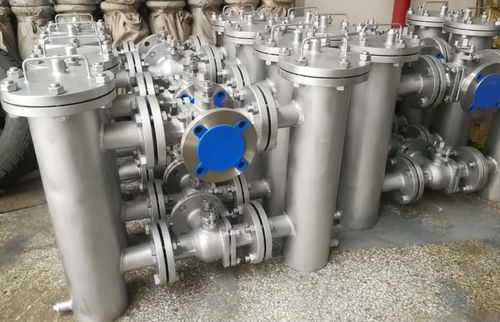

Duplex Basket Strainer:
Body: Carbon Steel, CF8, CF8M, CF3M, Cast Iron, SS304, SS316
Screen: SS304, SS304L, SS316, SS316L
Gasket: Graphite+Stainless Steel
Cover: A105, F304, F304L, F316, F316L
Cover Ball: A193 B7, A193 B8, A193 B8M
Cover Nut: 2H
Drain Plug: A193 B7, A193 B8, A193 B8M
Nominal Diameter: DN25 to DN200
Nominal Pressure: Class125 to Class300, PN10 to PN420
Design and Manufacture Standard: ASME B16.34
Flanged End Dimension: ANSI B16.1, BS EN 1092-2, DIN2501
Screwed End Dimension: ANSI B1.20.1, BS21
Face to Face Dimension: ANSI B16.10, DIN 3202, EN558-1, EN12982
Inspection and Test: API598
