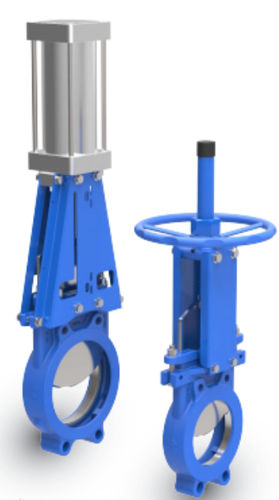

Knife gate valve pneumaticelectricfor control
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- pneumatic, electric
- Function
- for control
- Media
- for water
- Body
- flange, carbon steel, PTFE, EPDM, iron, NBR, polyurethane
- Applications
- wafer
- Other characteristics
- standard, DIN, unidirectional, actuated
- DN
Max.: 450 mm
(17.717 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)
Description
Unidirectional Knife Gate Valve
Body: Carbon Steel, Ductile Iron, SS316
Knife: SS304, SS316
Disc: SS304, SS316L
Wedge: SS304, SS316, SS316L
Packing: PTFE
Seal Ring: Polyurethane, EPDM, NBR, VITON
Yoke: SS304, SS316
Packing Gland: CF8, WCB
End Type: Wafer Type, Lug Type
Operation: Handwheel, Electric Actuated, Pneumatic Actuated
Design and Manufacture Standard: MSS SP-81
Face to Face Dimension: MSS SP-81
Flanged End Dimension: DIN, JIS
Inspection and Test: API 598
