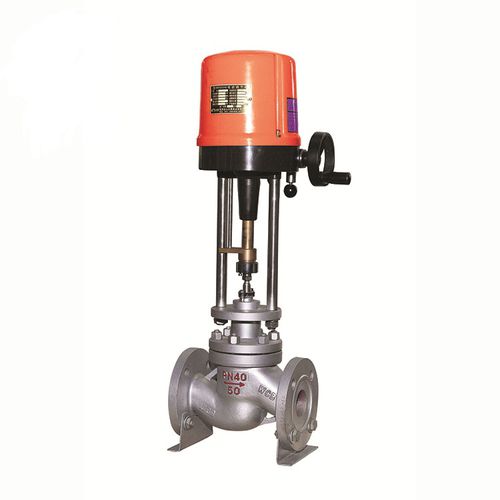

Globe valve with handwheelelectricfor control
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel, electric
- Function
- for control
- Body
- flange, cast iron, PTFE, cast steel, iron, PP, PE
- Applications
- flange
- Other characteristics
- ANSI, standard, DIN, actuated
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
16 bar, 25 bar, 40 bar, 64 bar
(232.1 psi, 362.6 psi, 580.2 psi, 928.2 psi)- Temperature
Min.: -196 °C
(-321 °F)Max.: 450 °C
(842 °F)
Description
Electric Actuated Globe Control Valve
Body: Cast Steel, Cast Iron, Ductile Iron, SS304, SS316, SS316L
Bonnet: Cast Steel, Cast Iron, Ductile Iron, SS304, SS316, SS316L
Lining Material: PO, PE, PP F46, F4, PFA
Bellows Material: PTFE, PFA
Stem Material: 17-4PH ASTM A276 304
Input Signal: 4-20mADC, 1-5VDC
Power Supply: AC220V 50HZ
Flange Standard: According to HG20592-97, ANSI, JIS, DIN and other standards
Rated flow coefficient Kv - Equal percentage - 3 - 6 - 10 - 16 - 25 - 40 - 63 - 100 - 160 - 250 - 400 - 630
Liner - 4 - 7 - 11 - 18 - 28 - 44 - 69 - 110 - 176 - 275 - 440 - 690
Rated Stroke L(mm) - 16 - 25 - 40 - 60
Diaphragm Effective Area - 280 - 400 - 600 - 1000
Inherent flow Characteristics - Equal percentage,Liner
Inherent rangeability - 50:01:00
The range of air source signals - 20 to 100,40 to 200,80 to 240
Electric actuator - Depand on the thrust and stroke which valve need
Power voltage - 220V.AC 50Hz 380V.AC 50Hz( Three phase)
Leakage class - Soft seal - VI Class,Zero Leakage
Metal seal - IV Class,V Class
