Air filter SM series

compressed aircartridgeseparation

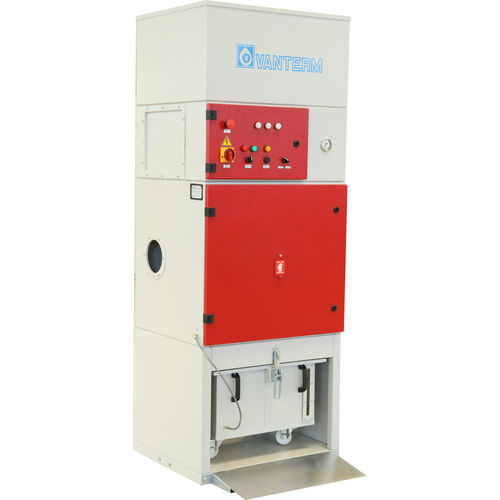

SM – Series filter units are designed for dedusting of dry dust, generated during various industrial operations (i.e. welding, mixing etc.) SM filter unit is delivered as a ready-to-operate dust collector with cartridge and optional cassette filter elements, fully integrated fan, automatic reverse jet pulse filter cleaning system and control panel. Comfortable use thanks to its Low Sound Level ≤70 dB(A) depending on model. With Dust Class M standard cartridge filters, the filtered-clean air can be returned back to the workshop. This prevents heat loss and ensures environment friendly and healthy application. On request, the separation degree is much more enhanced with optional HEPA 13 or HEPA 14 filter cassettes On request, SM-filter units can be equipped with activated carbon filter modules, to be used at processes where smoke and dust particles create odor and smell problems. Low consumption of pressured-air with ∆P controlled automatic VANTERM K-type jet-pulse cleaning
