Air filter M series

activated carbon

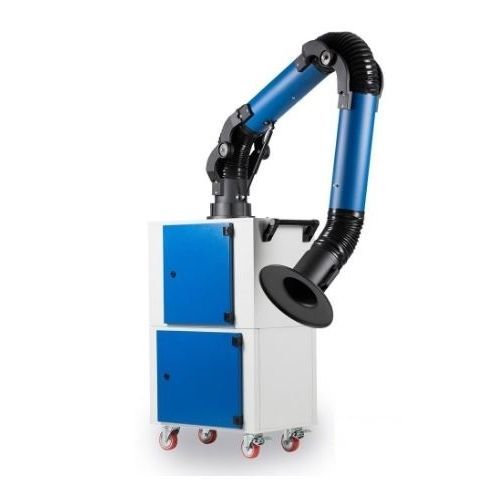

 M – model mobile filter units are designed as an indoor filtration solution for industrial processes, generating smoke and fume, with smell – odor problems.  M – filter units can be used with VANTERM EK-2 type extraction arms or with duct connection, depending on the applied process.  M filter unit is delivered as a ready-to-operate dust collector with cassette filter elements inside, fully integrated fan, and control box.  There are 2 stages of filtration in standard M – model filter units: First stage is particle filtration with G4 Class filter cassettes according to EN 779. The second stage is the active carbon filter cassette, which is used for removal of gas-phase contaminations.  Depending on various industrial operations, M – filter units can be equipped, as a third filtration stage, with optional HEPA 13 or HEPA 14 filter modules, to improve its filtration degree, on request.  The front side is enough for all maintenance and service needs. The contaminated air-inlet is on the top of the filter unit. So Mfilter unit with its compact design saves space on production ground.  All Electrical Voltage and Frequency configurations (i.e. 480V 3P~60 hz.) are available, on request.
