Fume filter KAB seriesdustcartridgepressure
Add to favorites
Compare this product
Characteristics
- Designed for
- dust, fume
- Filtration element
- cartridge
- Filtration method
- pressure
- Applications
- process, welding
- Other characteristics
- compact, integrated
- Operating pressure
Max.: 5,300 Pa
(0.769 psi)Min.: 2,330 Pa
(0.338 psi)- Flow
Max.: 8,400 m³/h
(296,643.2 ft³/h)Min.: 1,700 m³/h
(60,034.933 ft³/h)
Description

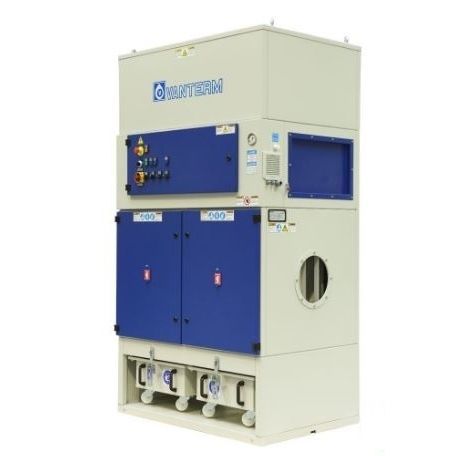

KAB Filter units are specially designed for dedusting of welding fume, smoke and dust at manual or robotic welding stations
Ready-to-operate (plug-n-play) with filters, integrated fan, control panel and automatic jet pulse cleaning.
KAB Series with W3 certification acc. to EN ISO 15012 standard, is used in any welding process including stainless steel welding.
Thanks to its compact tower design, KAB saves space on production ground.
OPTIONAL-VFD driven and automatic PID pressure transmitter fan speed control for energy saving.
Low consumption of pressured-air with ∆P controlled automatic jet-pulse cleaning.
Automatic start and stop synchronous with the operation. Fault signal sharing.
Catalogs
No catalogs are available for this product.
See all of Vanterm Isı ve Makina San. Tic. A.Ş.‘s catalogsOther Vanterm Isı ve Makina San. Tic. A.Ş. products
Stationary and Central Filter units
