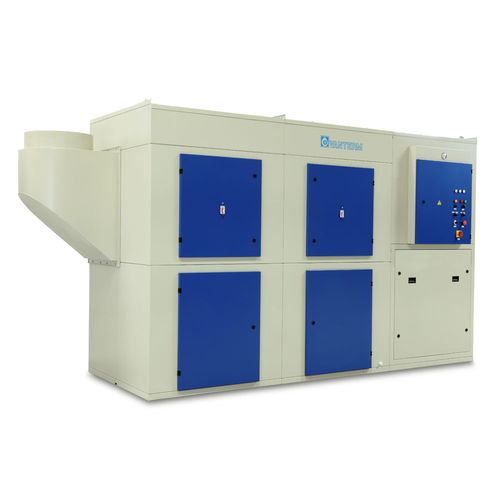

Dry dust extractor AC series

electric

Designed for dedusting of dry dust, generated during various industrial operations (i.e. sandblasting, welding, mixing etc.) Ready-to-operate with filters, integrated fan, automatic jet pulse filter cleaning system and control panel. Availability of placing filter unit adjacent to corners and walls – Saves space on production ground. Low Sound Level ≤70-75dB(A) depending on model. With Dust Class M filters, filtered-clean air recycled to the plant environment prevents heat loss and ensures environment friendly and healthy application. Low consumption of pressured-air with ∆P controlled automatic VANTERM K-type jet-pulse cleaning. As standard slave mod available, automatic start and stop synchronous with the related parent process. All Electrical Voltage and Frequency configurations (ex.480V 3P~60 hz.) are available with automation and power control implemented via worldwide available components. OPTIONAL-Automatic PID control with pressure transmitter regulated VFD (Variable Frequency Drive) for fan speed control ensures energy saving with optimum performance. OPTIONAL - Low air flow output signal and alarm ensure handson approach for performance observation, process safety and maintenance.
