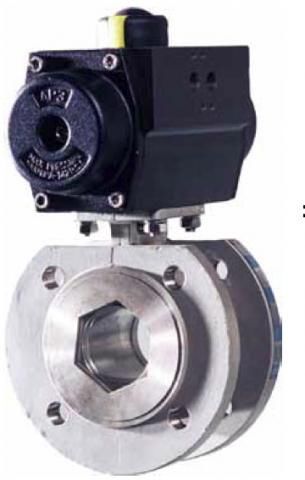

Ball valve S15Dleverelectrically-actuatedpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, electrically-actuated, pneumatically-operated
- Body
- flange, wafer
- Number of channels
- 2-way
- Other characteristics
- anti-static
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -30 °C
(-22 °F)
Description
DESCRIPTION
• 2-way wafer type ball valve with flange connection PN16
• Full bore
• Body, ball and stem SS316
• Mounting flange ISO 5211 for direct mounting pneumatic or electric actuators
• Seats and seals PTFE
• Pressure class PN16, flanged RF DIN2501
• Blow-out proof stem, lockable lever
• Suitable for vacuum
• Anti-static
• Temperature -30º C up to 180° C.
OPTIONS
• Automatic electric or pneumatic actuation
• Stem extension
• Endswitches
• Carbon steel version type C15D
• Spring return lever up to DN 100
• TFM seats
• Peek seats
• Integral seats
CERTIFICATS
• 3.1 Material certificate
• CE declaration
• TA-Luft declaration
