- VARIMEX-VALVES Poland Sp.z.o.o.

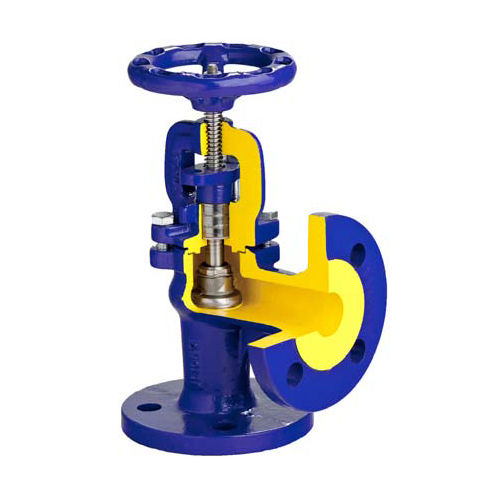

Globe valve 216with handwheelfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Media
- for water
- Body
- flange, right-angle, cast iron, bronze
- Applications
- for industrial applications
- DN
Min.: 15 mm
(0.591 in)Max.: 300 mm
(11.811 in)- Pressure
6 bar, 10 bar, 16 bar, 25 bar
(87 psi, 145 psi, 232.1 psi, 362.6 psi)- Temperature
225 °C, 300 °C, 350 °C
(437 °F, 572 °F, 662 °F)
Description
high thightness (leakproofness class - Aacc. EN -12266 - 1)
compact settlement
environment-friendly
tests acc. EN- 12266-1
flanges drilled according to EN 1092-2
face-to-face dimension according to EN 558 series 8
Aplications
hot cold and cooling water plants
steam plants
industrial technologies
heat engineering
power engineering
