- VARIMEX-VALVES Poland Sp.z.o.o.

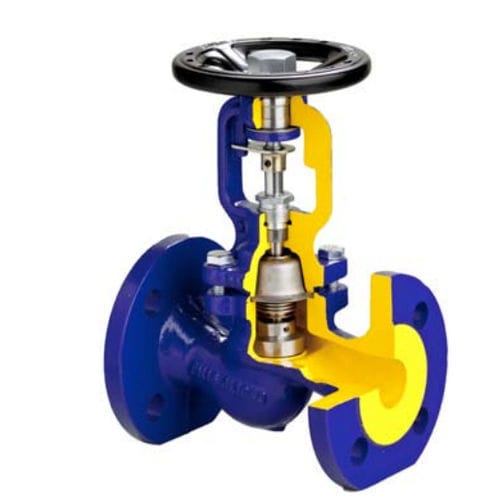

Valve with bellows seal 234globewith handwheelfor water
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Media
- for water
- Body
- flange, straight, cast iron
- Applications
- for industrial applications
- Other characteristics
- compact, with bellows seal
- DN
Max.: 250 mm
(9.843 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar, 40 bar
(232.1 psi, 580.2 psi)- Temperature
300 °C, 350 °C, 400 °C
(572 °F, 662 °F, 752 °F)
Description
high thightness (leakproofness class - Aacc. EN -12266 - 1)
environment-friendly
tests acc. EN - 12266 -1
flanges drilled according to EN 1092-2 for body material A, C
flanges drilled according to EN 1092-1 for body material F
face-to-face dimension according to EN 558-1 series 1
Aplications
hot and cold water plants
steam plants
neutral fluids
Catalogs
All Of Steel Stop Valves
23 Pages
Other VARIMEX-VALVES Poland Sp.z.o.o. products
STOP, STOP-CHECK AND CHECK VALVES
