NXP i.MX8M computer-on-module VAR-SOM-MX8M-NANO
NXP i.MX8M MiniArm® Cortex®-A53 Quad-corei.MX 6

NXP i.MX8M computer-on-module - VAR-SOM-MX8M-NANO - variscite - NXP i.MX8M Mini / Arm® Cortex®-A53 Quad-core / i.MX 6
NXP i.MX8M computer-on-module - VAR-SOM-MX8M-NANO - variscite - NXP i.MX8M Mini / Arm® Cortex®-A53 Quad-core / i.MX 6
NXP i.MX8M computer-on-module - VAR-SOM-MX8M-NANO - variscite - NXP i.MX8M Mini / Arm® Cortex®-A53 Quad-core / i.MX 6 - image - 2
Add to favorites
Compare this product


Characteristics

Processor
NXP i.MX8M, NXP i.MX8M Mini, Arm® Cortex®-A53 Quad-core, i.MX 6
Ports
USB 2.0, gigabit Ethernet, Bluetooth, DDR4 SDRAM, SO-DIMM
Operating system
Linux, Yocto, Android

Description

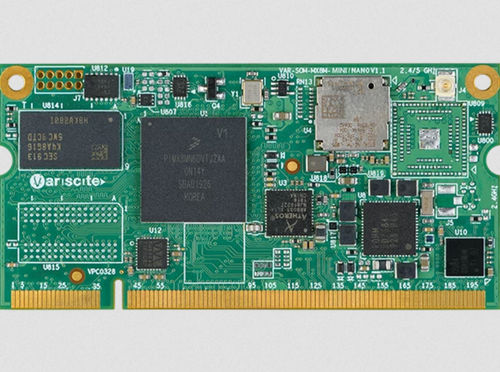

The VAR-SOM-MX8M-NANO is a cost-optimized System on Module (SoM) / Computer on Module (CoM) based on NXP’s i.MX 8M Nano, 1.5GHz Quad-core Cortex-A53™ plus 650MHz Cortex-M7™. The SoM offers an ideal solution for cost-sensitive designs that require power-efficiency and high-performance graphics as well as for general-purpose applications. This highly integrated platform’s connectivity options include certified single-band 802.11 b/g/n or dual-band 802.11 ac/a/b/g/n, BT5.2/BLE, GbE and USB2.0. Furthermore, the system supports full -40 to 85C industrial operating temperatures, Vivante GC7000UL GPU, LVDS and DSI. The VAR-SOM-MX8M-NANO is a member of the ‘VAR-SOM Pin2pin’ product family, providing a maximum scalability range; from the entry-level i.MX6UL/6ULL platform, through the i.MX 6 platforms, I.MX 8M-MINI, i.MX 8X up to the i.MX 8QuadMax.

VIDEO
