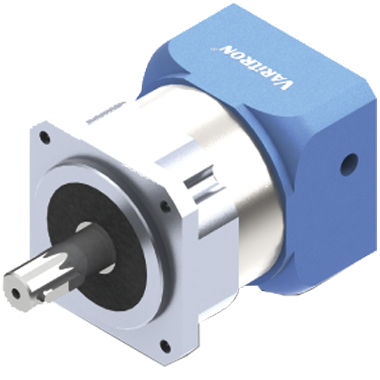

Planetary gearbox DH series
coaxial200 - 500 Nm100 - 200 Nm

Planetary gearbox - DH series - Varitron Eng. (Taiwan) Co. Ltd - coaxial / 200 - 500 Nm / 100 - 200 Nm
Planetary gearbox - DH series - Varitron Eng. (Taiwan) Co. Ltd - coaxial / 200 - 500 Nm / 100 - 200 Nm
Planetary gearbox - DH series - Varitron Eng. (Taiwan) Co. Ltd - coaxial / 200 - 500 Nm / 100 - 200 Nm - image - 2
Planetary gearbox - DH series - Varitron Eng. (Taiwan) Co. Ltd - coaxial / 200 - 500 Nm / 100 - 200 Nm - image - 3
Add to favorites
Compare this product


Characteristics

Type
planetary
Shaft orientation
coaxial
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 20 - 50 Nm, 1 - 2 kNm
Configuration
modular
Number of stages
single-stage, multi-stage
Performance
precision, low-noise, low-backlash
Applications
transmission, for industrial applications, for machinery, for servo motors, for conveyor, for lathes, for food industry machinery, for electric motors, for continuous operation
Other characteristics
aluminum
Rotational speed

Max.: 6,000 rpm
(37,699.11 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Power

Max.: 11,000 W
(14.96 hp)

Min.: 100 W
(0.14 hp)

Backlash

0.13 °, 0.83 °

Description

Varitron DH Inline High Precision planetary gearbox promise dynamic performances with low backlash servobox. An impressive assortment of servo grade planetary gearbox for our inline series. Providing the ultimate flexibility for our customers. - High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision. - Modular Deisgn of Motor Connection Plate - The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability. - Single-piece Gearbox & Advanced Surface Treatment - The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosionresistant capability. - Modular Input Shaft - Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed. - Integrated Planetary Arm Bracket - The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.
