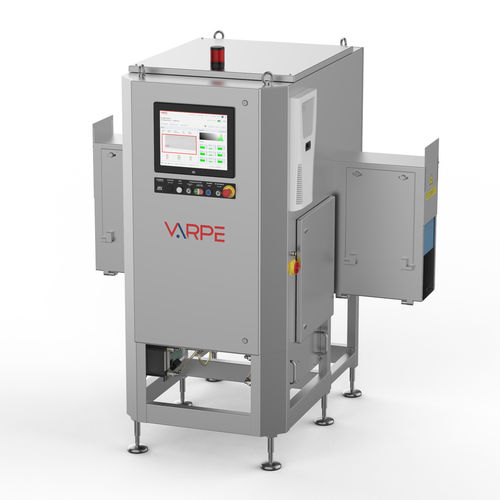

X-ray inspection system IRIX DL SIDE

measurementfor the pharmaceutical industryfor the beverage industry

The new generation of side-shot X-ray inspection equipment of Varpe offers innovative global solutions for product inspection, ensuring the safety and integrity of your production. The included side beam can be bottom-up for inspection of cans, jars or bottles where the interior is dense, or top-down for low dense products where it is easy that the contaminant ends up lodged in the base. The advanced X-ray technology of IRIX DL Side achieves exceptional levels of detection of ferric and non-ferrous material, stainless steel, glass, calcified bones, thorns and stones. It also simultaneously verifies product damage, breakage, mass measurement with estimated weight, and item count within the product. Its compact structure allows a direct coupling with the production line. This system complies with the international safety standards governing ionizing radiation emissions. Production : Up to 1200 p/min. Memory formats Up to 900 products Screen LCD-LED color touch screen 17” Protection IP54 / P66 (optional) Motor Asynchronous and / or Servo Motor Working temperature 0-40 ºC Manufacturing material Stainless Steel AISI 304 / AISI 316 (optional) Maximum product dimensions According to the needs Working height 800-1200 mm Resolution 0,8 a 0,4 mm/pix. Speed Up to 200 m/min High-voltage source Max. 80 kV - Max. 5 mA - Max. 600 W of high durability
