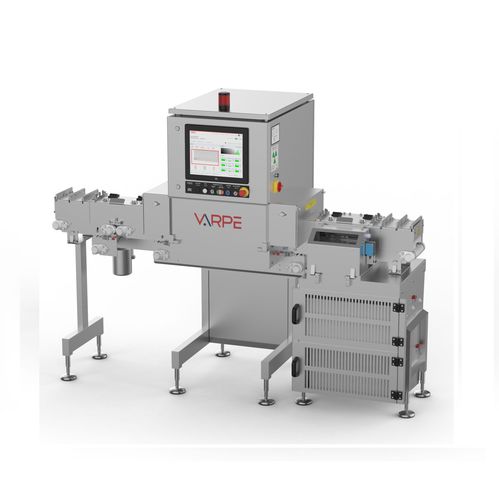

X-ray inspection system IRIX DV HD

measurementfor the pharmaceutical industryfor the beverage industry

The IRIX DV HD X-ray inspection system is equipped with a type of high-definition X-ray generator and a TDI (Time Delay Integration) detector that provides sharp high-resolution X-ray images. These images are interpreted by an advanced image processing software that offers maximum accuracy in foreign body detection (ferric and non-ferric material, stainless steel, glass, calcified bones, spines and stones), avoiding false rejections as much as possible. In addition, the equipment simultaneously checks for damaged products, breakages, mass measurement with estimated weight, and item count within the product. This system complies with the international safety standards governing ionizing radiation emissions. Production : Up to 1200 p/min. Memory formats Up to 900 products Screen LCD-LED color touch screen 17” Protection IP54 / P66 (optional) Motor Asynchronous and / or Servo Motor Working temperature 0-40 ºC Manufacturing material Stainless Steel AISI 304 / AISI 316 (optional) Maximum product dimensions According to the needs Working height 800-1200 mm Resolution 0,096 mm/pix. Speed Up to 80 m/min High-voltage source Max. 70 kV - Max. 8 mA - Max. 600 W of high durability
