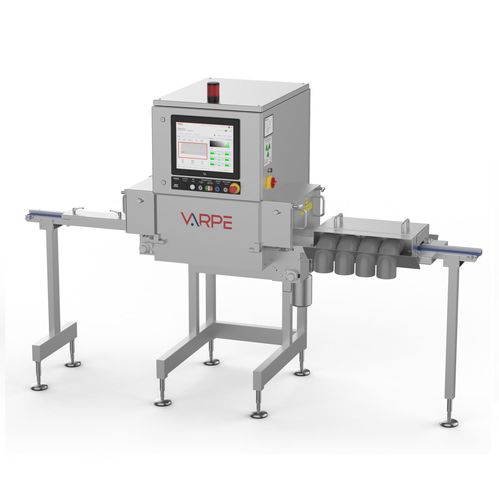

X-ray inspection system IRIX DV CORK

qualitymeasurementfor the pharmaceutical industry

The new generation of X-ray inspection equipment of Varpe offers innovative global solutions for the inspection of products with vertical beam, guaranteeing the integrity of your production. The advanced X-ray technology of the IRIX DV CORK allows a precise classification of the product based on its natural morphology. It also checks for damaged corks, breaks and inspects the inner layers of the product. In addition, it allows a double processing of the product. It is possible to have several simultaneous inspection tracks with different levels of classification depending on the defect that has been detected and its natural quality. This system complies with the international safety standards governing ionizing radiation emissions. Production : Up to 1200 p/min. Memory formats Up to 900 products Screen LCD-LED color touch screen 17” Protection IP54 / P66 (optional) Motor Asynchronous and / or Servo Motor Working temperature 0-40 ºC Manufacturing material Stainless Steel AISI 304 / AISI 316 (optional) Maximum product dimensions According to the needs Working height 800-1200 mm Resolution 0,8 a 0,4 mm/pix. Speed Up to 200 m/min High-voltage source Max. 70 kV - Max. 8 mA - Max. 600 W of high durability
