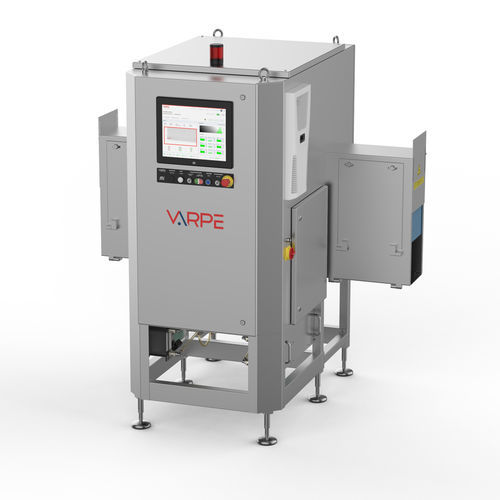

X-ray inspection system IRIX DLV AXIS

measurementgeometryfor cans

The IRIX DLV AXIS X-ray product inspection equipment features a double vertical side shot, a type of geometry that uses two generators. This type of inspection is especially suitable for cases in which the variability of formats and types of products is unavoidable, for example, in a factory that prepares pre-prepared products (tall cans, low cans, etc.). Its advanced X-ray technology achieves exceptional levels of detection of ferric and non-ferrous material, stainless steel and stones. They also simultaneously verify product damage, breakage, mass measurement with estimated weight, and item count within the product. This system complies with the international safety standards governing ionizing radiation emissions. Production : Up to 1200 p/min. Memory formats Up to 900 products Screen LCD-LED color touch screen 17” Protection IP54 / P66 (optional) Motor Asynchronous and / or Servo Motor Working temperature 0-40 ºC Manufacturing material Stainless Steel AISI 304 / AISI 316 (optional) Maximum product dimensions According to the needs Working height 800-1200 mm Resolution 0,8 a 0,4 mm/pix. Speed Up to 200 m/min High-voltage source Max. 80 kV - Max. 5 mA - Max. 600 W of high durability
