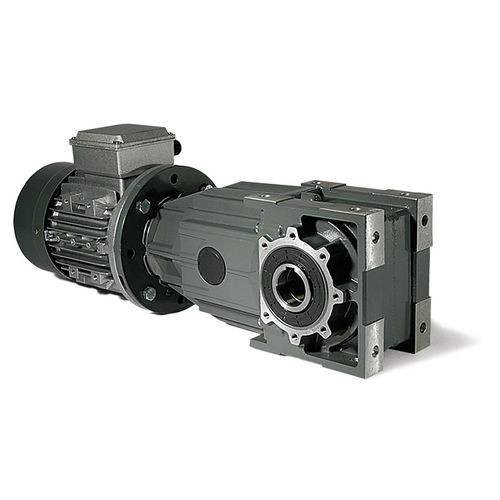

Helical gear gearbox RO
right anglehollow-shaft200 - 500 Nm

helical gear gearbox
helical gear gearbox
helical gear gearbox
helical gear gearbox
helical gear gearbox
helical gear gearbox
helical gear gearbox
helical gear gearbox
helical gear gearbox
Add to favorites
Compare this product


Characteristics

Type
helical gear
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm
Configuration
modular
Number of stages
three-stage
Performance
high-efficiency
Applications
for industrial applications, for food industry machinery, for machine tools, for automotive applications, for electric motors
Other characteristics
aluminum, linear, ATEX
Rotational speed

1,400 rpm, 1,800 rpm
(8,796.46 rad.min-1, 11,309.73 rad.min-1)

Power

Max.: 40.3 kW
(54.79 hp)

Min.: 2.7 kW
(3.67 hp)

Gear ratio

Max.: 315 unit

Min.: 6.3 unit

Description

The RO Series of 3-stage bevel helical gearboxes stand out for their high efficiency and for a modular structure in kits that can be assembled with extreme rapidity and simplicity. Main Components • Input and output oil seals in NBR • Housing and covers in die cast aluminium (till size 3) and grey cast iron (sizes 4, 5 and 6) • Bearings with ball or conical roller • Input flanges in die cast aluminium • Motor flexible coupling • Gears in cemented and hardened alloy steel • Synthetic oil for lifetime lubrication of the gears • RCA oil seal in NBR Plus • High efficiency • Low maintenance and management costs • Modular concept • Extended lifetime with excellent reliability • Easy installation and maintenance • Long life lubrication Special Solutions For Application Sectors • Silicone, Viton or special seals for high/low temperatures and food & beverage sector • Anodization for chemical and ship-building/marine sectors • Special lubricants for high/low temperatures and food & beverage sector • Non-standard breather plugs for high/low temperatures • Special paint finishes for chemical, ship-building/marine and food & beverage sector • ATEX version for potentially explosive environments For NEMA and servo motors • Flanges and couplings for servomotors • Output holes in inches • Input couplings for NEMA motors
