Ball valve Q series

manualtrunnionindustrial

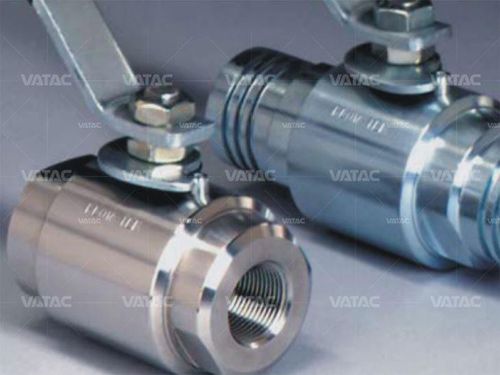

Two Piece Ball Valve Quick Details: Model NO.: Q41, Q11 Type: Flexible Ball Valve Function: Bypass-Valve Temperature: Normal Temperature Application: Industrial Usage, Water Industrial Usage, Household Usage Characteristic: 2 Piece Ball Valve Design & Manufacture: API 6D, Asme B16.34 & BS5351 Pre-Temp. Rating: Asme B16.34 Face to Face: Asme B16.10 Ends Connection: RF, NPT, Bw, Sw Inspect & Test: API 598 Certificate 1: Dnv CE 0575 Certificate 2: ISO 9001: 2008 Trademark: Vatac Transport Package: Sea Worthy Specification: API, ANSI, ASME, DIN, JIS etc. Origin: China HS Code: 84818010 Product Description: Two piece ball valves are mainly suitable for standard or high pressure applications. The operating temperature ranges from low temperature -196 to high temperature 500 °C. In most cases, it can replace the small size trunnion ball valves to reduce costs. This series of ball valves are designed with fire safety in accordance with API 607 or API 607. Features: 1) The two piece ball valve has compact structure and tight sealing. 2) It has standard features for fire safety, anti-static and explosion protection. 3) It can quickly or easily turn on or off most of the liquid and gas flow for any application that requires a simple on/off action.
