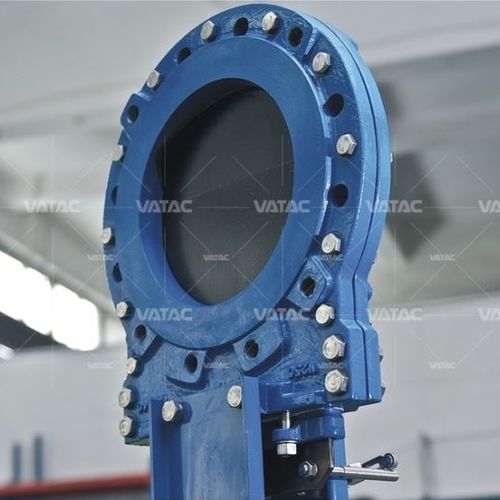

Knife gate valve
electro-hydraulicpneumaticmanual

knife gate valve
knife gate valve
knife gate valve
Add to favorites
Compare this product


Characteristics

Type
knife gate
Operation
electro-hydraulic, pneumatic, manual
Body
seat, line, stainless steel, cast iron, carbon steel, alloy
Applications
liquids, beverage, food
Other characteristics
ANSI

Description

Vatac Resilient Seat Wafer Knife Gate Valves are designed as soft seat to realize Tight-seal, Ends connections in Wafer. Size ranges from 2” to 60” diameter, pressures in PN6, PN10, PN16, ANSI # Class 125 & Class 150. A broad body and trim materials are selected and fabricated to suit for various service conditions » applications but not limited to areas of ◆ Pulp and Paper ◆ Power plants ◆ Wastewater treatment plants ◆ Chemical plants ◆ Food and Beverage ◆ Bulk handling ◆ Mining » STANDARDS COMPLIANCE: ◆ MSS SP-81 ◆ ASME B16.10 ◆ ASME B16.5 ◆ ASME B16.47 ◆ ASME B16.34 ◆ AS 2129 T/D or T/E ◆ BS 4504 T/D or T/E ◆ MSS SP-55 ◆ EN 1092 » Optional top flanges to ISO 5211 » Qualified for both gaseous and liquid services » Broad line of body and trim materials for a variety of medium service. » MSS SP-81 » Uni- or Bi-direction » Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Alloy Steel, Duplex steel » Pressure Ratings: ANSI 150#, PN10, PN16 » Size Ranges: 2" to 60"- 50mm to 1500mm (Larger sizes upon request) » Without Bolted Bonnet » Ends Connections: Wafer » Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic
