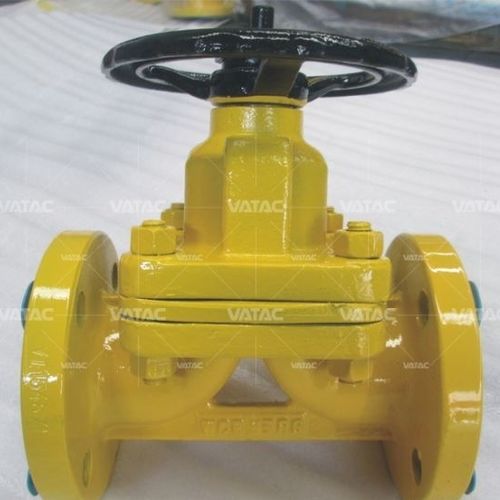

Diaphragm valve

with handwheelstraightPTFE

Fluorine Lined Straight Diaphragm Valves, with their smooth non-turbulent body design, have proven to be outstanding in resisting the erosion effect of abrasive media, providing low pressure drop and high flow characteristics. The flexible diaphragms ensure consistent leak tightness even when solids, powders and dry media are present. The wide range of lining materials make the valve suitable for many corrosive/abrasive applications. » Size Ranges: 1/2” through 14” » Pressure Ratings: ANSI #125, #150, PN6, PN10, PN16 » Standards compliance: ASME B16.34, DIN 3202, BS 5156, ASME B16.10, MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598, BS 4504 or equivalents » Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, or Other Specials » Lining Materials: PTFE, FEP, PFA and etc. » Ends Connections: Flanged RF or FF » Optional Locking Device » Position indicator » Optional Direct Mounting to ISO 5211 » Regular Bore » Handwheel, Electric or Pneumatic operated
