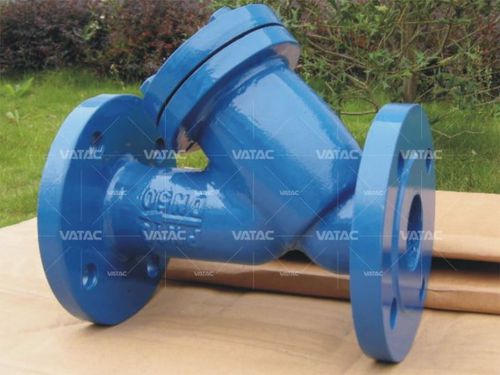

Suction strainer

Cast Y Strainer take their name from their configuration. They are most commonly used in pressurized lines, gas or liquid, but can also be used in suction or vacauum conditions. They are intended for application where small amounts of solid particulate are expected and where clean-out will be infrequent. If solids will flush easily from the screen, and fluid can be exhausted to atmosphere, a blow-down valve on the drain port will allow clean-out without removal of screen, and without interrupting the process flow. » Manufactured under ISO 9001:2008 Management System, with CE PED & API 6D Certified » Size Ranges: 1 1/2” through 24” » Pressure Ratings: ANSI #150 to 2500, PN16~PN420 » Standards compliance: ASME B16.34, DIN 3202, ASME B16.10, MSS SP-71, BS EN558, ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226, ISO 5208, API 598 or equivalents » Materials: Cast Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel, Cast Duplex or Other Specials » Ends Connections: Flanged(FF, RF, RTJ) to international standards » Screen: Stainless Steel, Gr. 304 or 316 » Fusion Bonded Epoxy Coating » Threaded Drain Plug Device
