Steam trap

automaticfloathigh-pressure

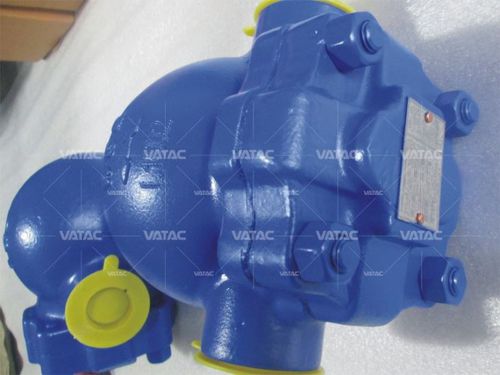

Vatac Thread Ball Float Steam Trap is supplied with a right to left (R-L) flow configuration having horizontal connections and has provision for adding an air venting option; Please note that the unit is supplied with a ¾" thread connection in the cover with a plug screwed into the fitting. It has been designed for floor mounting and is suitable for most high-pressure process and drainage applications. Its simple robust ball float mechanism ensures excellent resistance to water hammer. All internals are easily accessible for in-line maintenance and a drain port allows full body drainage. » Size Range: DN15 through DN100, 1/2”~4” » Pressure Class: ANSI CL150 through CL300, PN10 to PN64 » Cast or Forged Body in Cast Iron, Carbon Steel, Stainless Steel, or Duplex » Stainless Steel Gr. 304 Trim as standard » Ends: Thread ASME B 16.11-NPT or BS21-BSP » STANDARDS COMPLIANCE: ASME B16.34, DIN 3202, ASME B16.10, MSS SP-71, BS EN558, ASME B1.20.1, BS 21, ISO 5208, API 598 » Suitable for both horizontal and vertical lines
