LED display Jumbo

temperature measurement

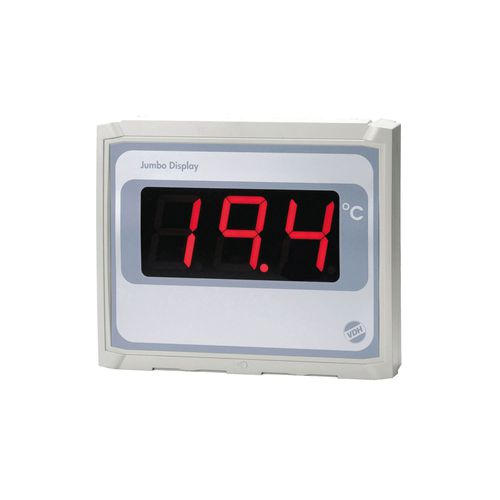

The Jumbo Display is a digital 3-digit display with 10cm large digits. The Jumbo Display is very useful as temperature display in large areas. The display is built in a metal housing for wall mounting. A panel mounting version is also available. The anodised aluminium front can be provided with your company logo or a special print. Cable input on the back or bottom side and simple mounting on the connection terminals. The Jumbo Display has a Pt-100 temperature sensor input or a 0/+5 Vdc measuring signal. The Jumbo Display is supplied with a temperature range of -10/+30°C with read-out per 0.1°C. Versions with other ranges are available on request. The Jumbo Display is supplied directly with 230Vac. Other supply voltages are possible on request. Technical specifications Housing: Grijs ABS Kunststof Front: Polycarbonaat, IP-44 Front connection: Schroefklemmen Power input: 230 Vac, 50/60 Hz, (-10/+5%) Measure range: -10/+30°C Display: Digitaal 3-cijferig display met 10 cm grote cijfers Sensor: SM 800 (PT-100, 3-leider sensor, volgens DIN/IEC 751), niet meegeleverd Accuracy: ± 0.5% van het bereik Voltage: 230 V Housing: Opbouw
