Electric stacker truck BS91 ET DVI
hydraulicwalk-behind24 V

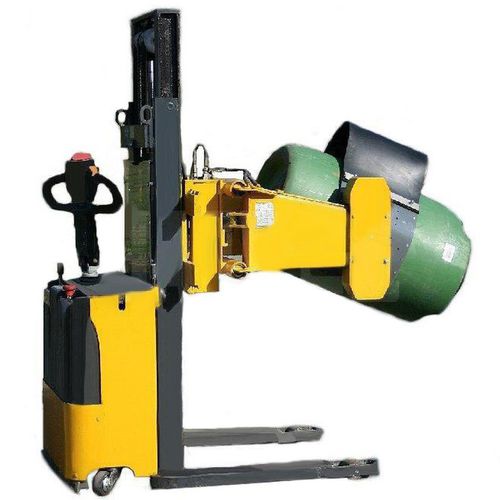

Electric stacker truck - BS91 ET DVI - VEAB - hydraulic / walk-behind / 24 V
Electric stacker truck - BS91 ET DVI - VEAB - hydraulic / walk-behind / 24 V
Electric stacker truck - BS91 ET DVI - VEAB - hydraulic / walk-behind / 24 V - image - 2
Add to favorites
Compare this product


Characteristics

Energy
electric, hydraulic
Operator
walk-behind
Voltage
24 V
Applications
for drums
Other characteristics
steel, stainless steel, drum-handling
Carrying capacity

Max.: 1,000 kg
(2,204.6 lb)

Min.: 200 kg
(440.9 lb)

Lifting height

6 m
(19'08" )

Overall width

850 mm
(33.5 in)

Overall length

1,300 mm
(51.2 in)

Turning circle radius

1,460 mm
(57.5 in)

Battery capacity

30 Ah

Motor power traction

1.4 kW
(1.903 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4 km/h
(2.49 mph)

Lifting speed

0.14 m/s
(0.459 ft/s)

Weight

950 kg
(2,094.39 lb)

Description

Strong and reliable, BS91 ET can be an economical alternative to the BS120 trolley. Equipped with an efficient frontal drum tilter, this is the ideal product if you have to move drums. ERGONOMICS: the double column stanchion can reach high heights while the clamping, lifting and rotation controls are lever-operated and located on the dashboard. RELIABILITY: the 160 A/h battery and the 1.4 kW AC traction and 2.2 kW DC lifting motors make it a reliable trolley. SAFETY: today's working world pays more and more attention to the operator's safety, for this reason VEAB trolleys are equipped with many accident prevention systems such as: Blocking valves to prevent the drum from falling if the hydraulic hoses are cut. Maximum pressure valve for correct tightening of the drum.
