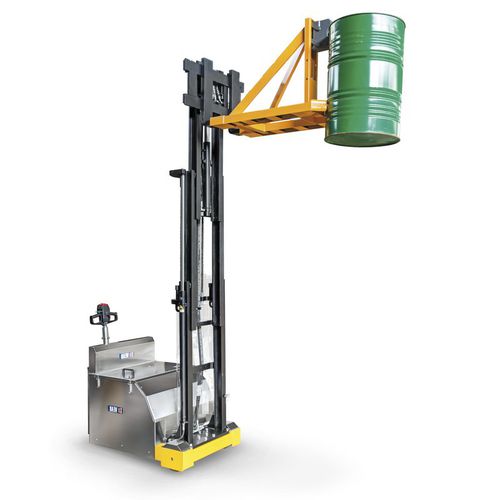

Electric stacker truck BS106 F
walk-behind24 Vhandling

Electric stacker truck - BS106 F - VEAB - walk-behind / 24 V / handling
Electric stacker truck - BS106 F - VEAB - walk-behind / 24 V / handling
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
handling, drum
Other characteristics
counterbalanced, steel, stainless steel, tilting
Carrying capacity

Min.: 200 kg
(440.9 lb)

Max.: 1,000 kg
(2,204.6 lb)

Lifting height

6,000 mm
(236.22 in)

Overall width

2,000 mm
(78.7 in)

Overall length

2,600 mm
(102.4 in)

Turning circle radius

1,460 mm
(57.5 in)

Battery capacity

370 Ah

Motor power traction

1.4 kW
(1.903 hp)

Motor power lifting

4 kW
(5.438 hp)

Travel speed

5 km/h
(3.11 mph)

Lifting speed

0.16 m/s
(0.525 ft/s)

Weight

2,150 kg
(4,739.94 lb)

Description

Electric trolley counterweighted with FORKS and DRUM-HOLDING CLAMPS For all drums with top edge. BS106 represents the maximum expression of the counterbalanced drum tilting trolley for ergonomics, reliability, safety and cleanliness. Equipped with forks and the BS85 grip forklift (of proven reliability and durability), this product is unrivalled when it comes to moving/touching drums and goods without having to take up the footprints of the trolley. ERGONOMICS: reaching high storage heights (6000 mm) with this trolley is very simple and fast, the lifting buttons located on the power-steered helm make it an extremely manoeuvrable trolley. RELIABILITY: the 370 A/h battery (with built-in 24 V-40 A/h HF battery charger for easy recharging from 230 V power outlets) and the 1.4 kW AC traction and 4 kW AC lifting motors (alternating current) are the strong points that make the BS106 a very reliable trolley that requires very little maintenance, great autonomy and very fast movement execution. A feature not to be forgotten is also the possibility to customize all the trolley speeds: transfer, clamping, lifting, rotation. SAFETY: VEAB trolleys, thanks to the numerous accident prevention systems with which they are equipped, are perfectly in line with the increasingly demanding regulations in terms of operator safety.
