Drum trolley BS91 PFV
transportmetalwith swivel casters

Drum trolley - BS91 PFV - VEAB - transport / metal / with swivel casters
Drum trolley - BS91 PFV - VEAB - transport / metal / with swivel casters
Drum trolley - BS91 PFV - VEAB - transport / metal / with swivel casters - image - 2
Add to favorites
Compare this product


Characteristics

Type
transport
Material
metal
Intended load
drum
Other characteristics
with swivel casters
Carrying capacity

210 kg
(463 lb)

Description

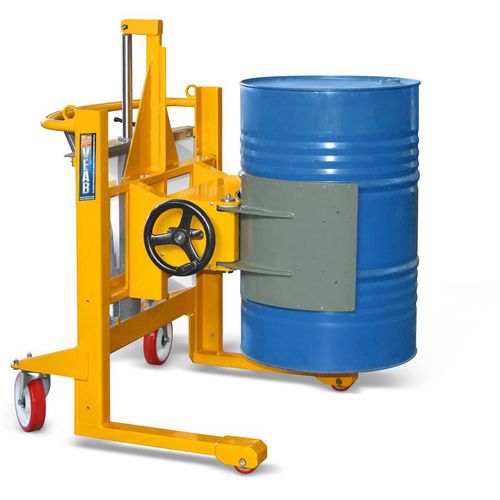

Single-drum Trolley for gripping metal, plastic and cardboard drums on the cylindrical edge. If you need to transport drums without upper edge, the BS91 PFV trolley is the ideal solution because the drum is firmly attached to the cylindrical part by two 400 mm high gripping jaws completely covered with interchangeable rubber, manually operated by a handwheel. The drum is lifted and lowered manually by means of a lever pump. Optional items: Special frame and cradle designs TECHNICAL SPECIFICATIONS Weight - 210 kg Drive - Manual traction Grip - Manual by handwheel Lifting - Manual with lever pump Length - 850 mm Width - 500/1400 mm Height - 1200/2000 mm Max. lifting height - 600/1400 mm Turning radius - 870 mm Gripping range - D 300/700 mm Height of gripping jaws - 400 mm Warranty (years) - 3
