Drum-handling stacker truck BS120 ET DVLI
electrichydraulicwalk-behind

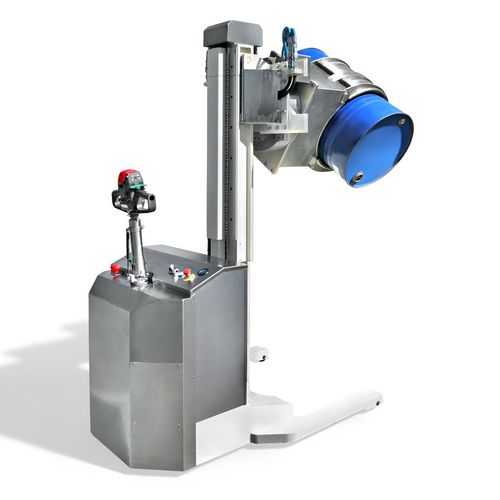

Drum-handling stacker truck - BS120 ET DVLI - VEAB - electric / hydraulic / walk-behind
Drum-handling stacker truck - BS120 ET DVLI - VEAB - electric / hydraulic / walk-behind
Drum-handling stacker truck - BS120 ET DVLI - VEAB - electric / hydraulic / walk-behind - image - 2
Drum-handling stacker truck - BS120 ET DVLI - VEAB - electric / hydraulic / walk-behind - image - 3
Add to favorites
Compare this product


Characteristics

Energy
electric, hydraulic
Operator
walk-behind
Voltage
24 V
Applications
handling, drum
Other characteristics
steel, stainless steel, drum-handling, telescopic, tilting, column type
Lifting height

3,000 mm
(118.11 in)

Overall width

850 mm
(33.5 in)

Overall length

2,600 mm
(102.4 in)

Turning circle radius

1,460 mm
(57.5 in)

Battery capacity

260 Ah

Motor power traction

1.4 kW
(1.903 hp)

Motor power lifting

2.5 kW
(3.399 hp)

Travel speed

5 km/h
(3.11 mph)

Lifting speed

0.14 m/s
(0.459 ft/s)

Weight

1,600 kg
(3,527.4 lb)

Description

Electric trolley with LATERAL hydraulic drum tilt Variable clamping diameter for all types of drums. With its telescopic central column, BS120 ET is a drum tilter with considerable strengths such as: ergonomics, reliability and durability, safety in use and cleaning. Equipped with an efficient lateral drum tilter, this is the ideal product if you have to move drums with a fast electric trolley with small footprints. ERGONOMICS: the single column placed at the centre of the trolley and the clamping and lifting buttons placed on the helm make it an extremely handy trolley, with a good view from all the manoeuvring points. RELIABILITY: the 260 A/h battery (with built-in 24 V-30 A/h HF battery charger for easy recharging from 230 V power outlets) and the 1.4 kW AC traction and 2,2 kW AC lifting motors (alternating current) are the strong points that make the BS120 a very reliable trolley that requires very little maintenance, great autonomy and very fast movement execution. A feature not to be forgotten is also the possibility to customize all the trolley speeds: transfer, clamping, lifting, rotation. SAFETY: VEAB trolleys, thanks to the numerous accident prevention systems with which they are equipped, are perfectly in line with the increasingly demanding regulations in terms of operator safety.
