Electric stacker truck BS120 DVE
with rider platform12 Vhandling

Electric stacker truck - BS120 DVE    - VEAB - with rider platform / 12 V / handling
Electric stacker truck - BS120 DVE    - VEAB - with rider platform / 12 V / handling
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
with rider platform
Voltage
12 V
Applications
handling, drum
Other characteristics
drum-handling, tilting, column type
Battery capacity

130 Ah

Description

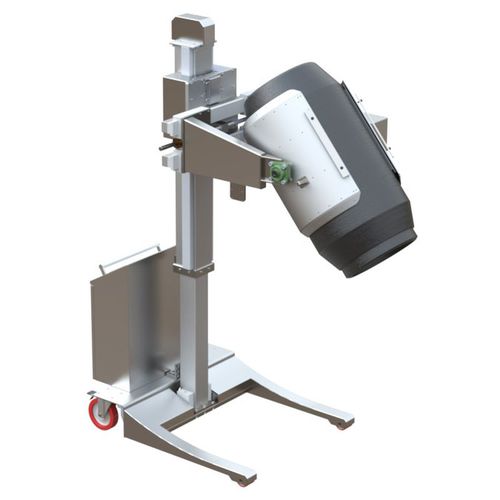

BS120 DVE is an electric drum lift tilter trolley equipped with a manual frontal drum tilter capable of handling a wide variety of drums; the lifting and lowering by means of an electric motor (push-button operated) allows significant emptying heights to be reached in a short time and without any effort on the part of the operator. The electric motor, the armoured battery (12 V 130 A/h) and the high frequency battery charger are placed in a special compartment, which has IP55 protection degree against the penetration of dust and water splashes. The single column at the centre of the trolley offers a good view from all angles and makes it extremely manoeuvrable; it also allows, in the stainless steel version, high quality finishes that can be easily cleaned even with aggressive products. The drum is gripped by the 400 mm high clamping jaws, completely covered with interchangeable rubber and locked with a sturdy clamping handwheel; continuous 360° frontal rotation is achieved by manually actuating the handwheel, which can engage a chain to make it easier for the operator to empty the drums at height. With the help of appropriate accessories we are also able to handle drums that are not cylindrical or objects with special shapes. A special feature of all VEAB manual tilting trolleys, which is uncommon and should not be underestimated from a safety point of view, is that they keep the drum stable in the emptying position once rotated.

VIDEO
