Drum-handling stacker truck BS120 ET DVLI rid
electrichydraulicwalk-behind

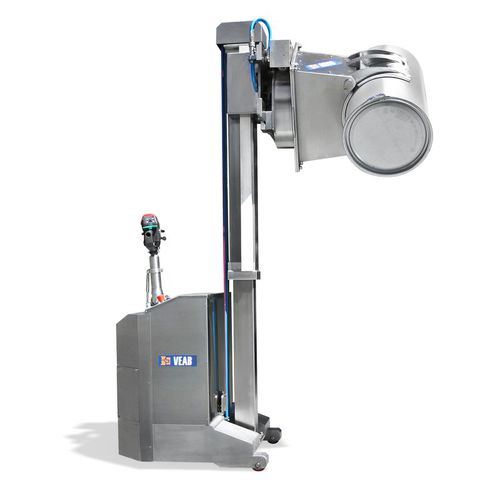

Drum-handling stacker truck - BS120 ET DVLI rid - VEAB - electric / hydraulic / walk-behind
Drum-handling stacker truck - BS120 ET DVLI rid - VEAB - electric / hydraulic / walk-behind
Drum-handling stacker truck - BS120 ET DVLI rid - VEAB - electric / hydraulic / walk-behind - image - 2
Drum-handling stacker truck - BS120 ET DVLI rid - VEAB - electric / hydraulic / walk-behind - image - 3
Drum-handling stacker truck - BS120 ET DVLI rid - VEAB - electric / hydraulic / walk-behind - image - 4
Drum-handling stacker truck - BS120 ET DVLI rid - VEAB - electric / hydraulic / walk-behind - image - 5
Add to favorites
Compare this product


Characteristics

Energy
electric, hydraulic
Operator
walk-behind
Voltage
24 V
Applications
handling, drum
Other characteristics
counterbalanced, steel, stainless steel, drum-handling
Carrying capacity

200 kg
(440.9 lb)

Lifting height

3,000 mm
(118.11 in)

Overall width

850 mm
(33.5 in)

Overall length

1,100 mm
(43.3 in)

Turning circle radius

1,460 mm
(57.5 in)

Battery capacity

260 Ah

Motor power traction

1.4 kW
(1.903 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

5 km/h
(3.11 mph)

Lifting speed

0.16 m/s
(0.525 ft/s)

Weight

950 kg
(2,094.39 lb)

Description

Electric trolley counterbalanced with LATERAL hydraulic drum tilter Variable clamping diameter for all types of drums. BS120 ET Rid is the younger brother of BS106 because it transports lighter loads (being smaller); built by VEAB always with great attention to detail, it remains a very valid trolley: for ergonomics, reliability, safety and cleaning. Equipped with an efficient lateral drum tilter, it is the ideal product to move drums without the footprint of the trolley. ERGONOMICS: the single column placed at the centre of the trolley and the clamping and lifting buttons placed on the helm make it an extremely handy trolley, with a good view from all the manoeuvring points. RELIABILITY: the 260 A/h battery (with built-in 24 V-30 A/h HF battery charger for easy recharging from 230 V power outlets) and the 1.4 kW AC traction and 2,2 kW AC lifting motors (alternating current) are the strong points that make the BS120 a very reliable trolley that requires very little maintenance, great autonomy and very fast movement execution. A feature not to be forgotten is also the possibility to customize all the trolley speeds: transfer, clamping, lifting, rotation. SAFETY: VEAB trolleys, thanks to the numerous accident prevention systems with which they are equipped, are perfectly in line with the increasingly demanding regulations in terms of operator safety.
