Manual tipping station BS91 B
for containerslifting

Manual tipping station - BS91 B - VEAB - for containers / lifting
Manual tipping station - BS91 B - VEAB - for containers / lifting
Manual tipping station - BS91 B - VEAB - for containers / lifting - image - 2
Manual tipping station - BS91 B - VEAB - for containers / lifting - image - 3
Add to favorites
Compare this product


Characteristics

Operation
manual
Applications
for containers
Other characteristics
lifting
Carrying capacity

300 kg
(661.39 lb)

Lifting height

Max.: 2,500 mm
(98.43 in)

Min.: 1,500 mm
(59.06 in)

Description

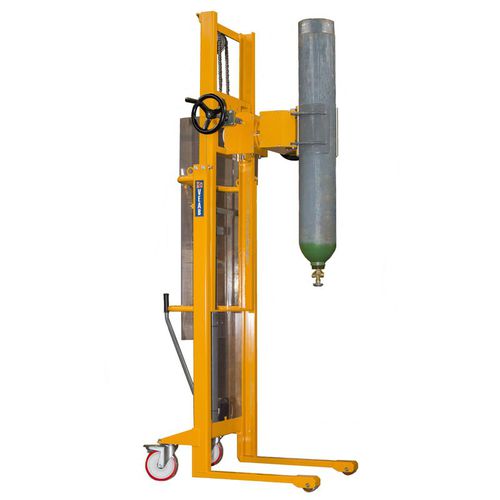

The manual trolley BS91 B equipped with a manual lateral tilter is the ideal product if a small quantity of bottles (up to a maximum weight of 300 kg) with different diameters and types. The bottle is gripped by clamping jaws completely covered with interchangeable rubber and locked with a sturdy clamping handwheel; continuous 360° lateral rotation is achieved by manually actuating the handwheel, which can engage a chain to make it easier for the operator to empty the bottleat height. The bottles can be kept reverse even for long periods. A special feature of all VEAB manual tilting trolleys, which is uncommon and should not be underestimated from a safety point of view, is that they keep the bottle stable in the emptying position once rotated.
