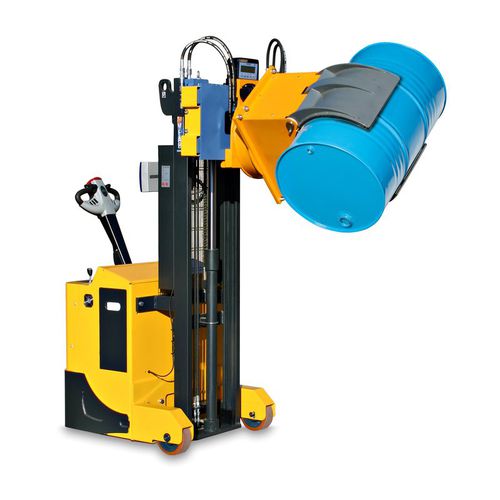

Drum-handling stacker truck BS91 ETC DVLI
electricwalk-behind24 V

Drum-handling stacker truck - BS91 ETC DVLI - VEAB - electric / walk-behind / 24 V
Drum-handling stacker truck - BS91 ETC DVLI - VEAB - electric / walk-behind / 24 V
Drum-handling stacker truck - BS91 ETC DVLI - VEAB - electric / walk-behind / 24 V - image - 2
Drum-handling stacker truck - BS91 ETC DVLI - VEAB - electric / walk-behind / 24 V - image - 3
Drum-handling stacker truck - BS91 ETC DVLI - VEAB - electric / walk-behind / 24 V - image - 4
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
for drums
Other characteristics
counterbalanced, steel, stainless steel, drum-handling, tilting
Carrying capacity

Max.: 1,000 kg
(2,204.6 lb)

Min.: 200 kg
(440.9 lb)

Lifting height

6 m
(19'08" )

Overall width

850 mm
(33.5 in)

Overall length

2,600 mm
(102.4 in)

Turning circle radius

1,460 mm
(57.5 in)

Battery capacity

30 Ah

Motor power traction

1.4 kW
(1.903 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

4 km/h
(2.49 mph)

Lifting speed

0.14 m/s
(0.459 ft/s)

Weight

1,600 kg
(3,527.4 lb)

Description

Electric trolley counterbalanced with LATERAL hydraulic drum tilter Variable clamping diameter for all types of drums. Strong and reliable, BS91 ETC can be an economical alternative to the BS106 counterweighted trolley. Equipped with an efficient lateral drum tilter, it is the ideal product to move drums without the footprint of the trolley. ERGONOMICS: the double column stanchion can reach high heights while the clamping, lifting and rotation controls are lever-operated and located on the dashboard. RELIABILITY: the 240 A/h battery and the 1.4 kW AC traction and 2.2 kW DC lifting motors make it a reliable trolley. SAFETY: today's working world pays more and more attention to the operator's safety, for this reason VEAB trolleys are equipped with many accident prevention systems such as: Blocking valves to prevent the drum from falling if the hydraulic hoses are cut. Maximum pressure valve for correct tightening of the drum. "Low speed" function for safe manoeuvring in narrow spaces.
