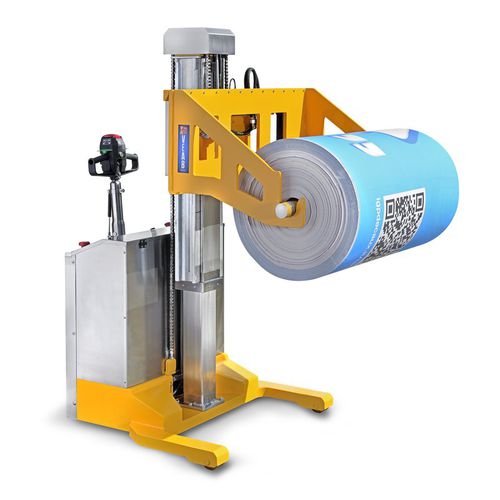

Reel handling stacker truck BS120 ET

electricwalk-behindfor lifting

BS120 ET, built by VEAB with considerable attention to detail, its a very good trolley for: ergonomics, reliability, safety and cleanliness. Equipped with a highly efficient cradle for coil and a 200 mm sideshifter (100+100 mm), this is the ideal product for handling reels and positioning them on the machines. ERGONOMICS: the single column placed at the centre of the trolley and the lifting button placed on the helm make it an extremely handy trolley, with a good view from all the manoeuvring points. RELIABILITY: the 260 A/h battery (with built-in 24 V-40 A/h HF battery charger for easy recharging from 230 V power outlets) and the 1.4 kW AC traction and 2.2 kW AC lifting motors (alternating current) are the strong points that make the BS120 ET a very reliable trolley that requires very little maintenance, great autonomy and very fast movement execution. A feature not to be forgotten is also the possibility to customize all the trolley speeds: transfer and lifting. SAFETY: VEAB trolleys, thanks to the numerous accident prevention systems with which they are equipped, are perfectly in line with the increasingly demanding regulations in terms of operator safety. Blocking valves to prevent the formwork from falling if the hydraulic hoses are cut. "Low speed" function for safe manoeuvring in narrow spaces. System that prevents accidental start of travel, detects the minimum angle of tilting (on request also the maximum angle) of the helm with respect to the vertical allowing the operation only with the operator in a suitable driving position.
