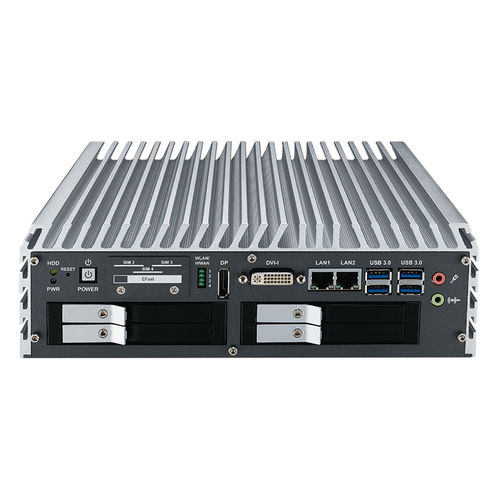

Box PC IVH-7700-QRD

embeddedwall-mountedIntel® Core i series

Intel® Quad Core™ i7/ i5/ i3 Processor Fanless, -25°C to 70°C Operating Temperature 4 GbE PoE+ Ports and 2 GbE LAN Ports 4 Mini PCIe Slots 4 SIM Card Sockets (3 External) 4 Front-access 2.5" HDD/ SSD Trays 4 USB 3.0 with Independent Controllers Configurable Ignition Power Control Optional supports M12 Connectors Internal UPS, 6V to 78V DC-IN Powered by Quad Core Intel® Core™ i7/ i5/ i3 processor, DDR3 or DDR3L dual channel up to 16GB memory; Intel® HD 4000 graphics supports DVI-I, DisplayPort, and dual channel 24-bit LVDS triple independent displays; 4 front-access 2.5” SSD/ HDD trays, 4 GigE PoE+ ports, optional M12 connection for PoE+, dual GigE LAN ports, 4 Mini PCIe slots, 4 SIM card sockets (3 front-access, 1 internal), 4 USB 3.0 with independent controllers, 6V to 78V wide range power input, smart surge protection up to 200V, configurable ignition power control, UPS supported, 16 isolated DIO, fanless design and -25°C to 70°C operating temperature, Vecow IVH-7700 Series In-Vehicle Fanless Embedded System delivers excellent system performance for in-vehicle mission critical applications.
