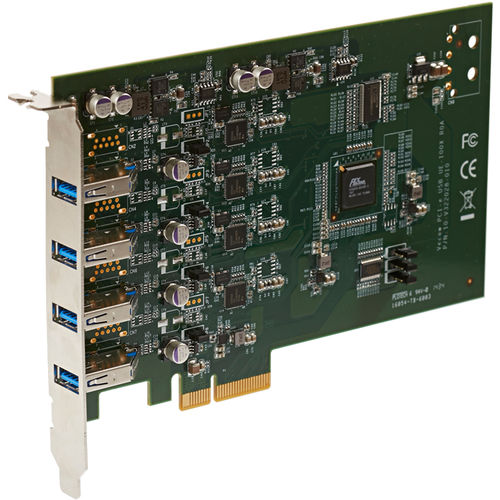

PCIe video capture card UE-1004

4-channel

PCIe x4 Gen2 interface 4 USB 3.0 ports 4 Independent USB 3.0 Host Controllers User-configurable 900mA and 1500mA current limit Supports Windows XP/7/8 and Linux Compliant with USB 3.0 specification Rev. 1.0 and Intel® xHCI specification Rev. 1.0 Software-programmable per-port power on/off control (by request) Designed for high-speed data rate industrial vision applications, Vecow's 4-port USB 3.0 frame grabber, UE-1004, provides up to 10 times of data rate over USB 2.0. To guarantee performance for each port, UE-1004 has four independent NEC/Renesas μPD720202 USB 3.0 Host Controllers with x4 PCI Express Gen2 interface which enables every USB 3.0 port achieves up to 5Gbps bandwidth without interfering system resource and performance. Together with a selection of Vecow's high performance embedded systems, the UE-1004 USB 3.0 adaptor provides robust solutions for Machine Vision, Factory Automation, Quality Assurance, Logistics, Medicine, and Security and Traffic Surveillance applications.
