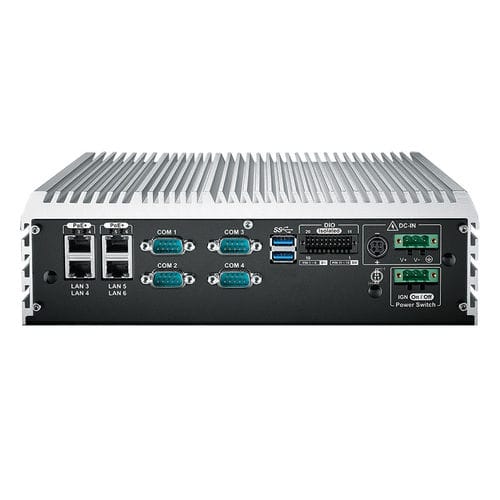

All-in-one computer ECS-9000-PoEembeddedmobileIntel® Skylake Processor
Add to favorites
Compare this product
Characteristics
- Type
- all-in-one
- Configuration
- embedded, mobile
- Processor
- Intel® Skylake Processor
- Ports
- DVI, DisplayPort, USB, gigabit Ethernet, USB 3.0, 4G, WiFi, 3G, SIM card, SATA
- Domain
- industrial, automation, machine vision
- Protection level
- rugged
- Other characteristics
- fanless, PoE
Description
LGA 1151 Socket supports Quad Core 6th Generation Intel® Core™ i7/i5/i3 Processor (Skylake-S)
Fanless, -40°C to 75°C Operating Temperature
6 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
3 Front-access SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
16 Isolated DIO
M2DOM supports up to 8GT/s data rate
6V to 36V DC-in with 80V Surge Protection
Configurable Ignition Power Control
6 USB 3.0, 4 COM, 3 Mini PCIe
Onboard DVI-I, DVI-D and DisplayPort display interface, up to 4K display
2 DDR4 2133MHz Memory, up to 32GB
Workstation-Grade Leading Performance
Intel® Xeon® processor for workstation
Intel® C236 chipset for workstation
Max 11% CPU performance impro Versatile Expansions
Compact M2DOM, up to 256GB capacity
Full function SUMIT A, B for 10GigE LAN/ 10GigE SFP+/ SIM Card/ GigE LAN/ GigE Fiber LAN/ PoE LAN/ Video Capture
2 Front-access 2.5” SSD/ HDD trays, up to 4TB capacity
3 Mini PCI for PCIe/ USB 3.0/ SIM/ mSATA
ved, 22% lower CPU power consumption
