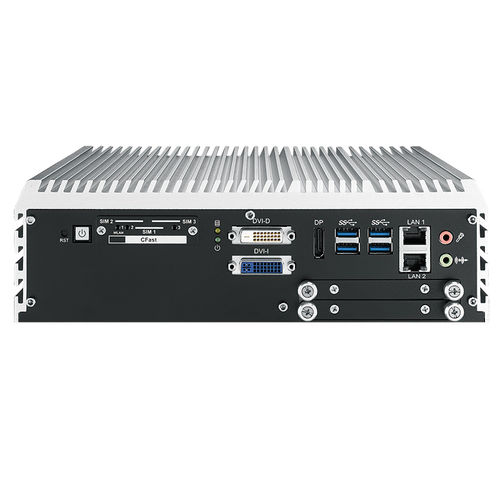

All-in-one computer ECS-9210

embeddedmobileIntel® Xeon

LGA 1151 Socket supports Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) with C236 Chipset Fanless, -40°C to 75°C Operating Temperature 6 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported 3 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS Expansion : 1 PCIe x16, 3 Mini PCIe/mSATA, 1 M.2 PCIe x16 expansion supports up to 160W Power Budget Storage : 2 2.5" SSD Tray, 1 CFast, 2 SATA III 32 Isolated DIO, 8 USB 3.0, 4 COM 6V to 36V DC-in with 80V Surge Protection Configurable Ignition Power Control DVI-I, DVI-D and DisplayPort display interface, up to 4K displays Powered by 7th/6th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S) engine, fanless -40°C to 75°C operating temperature, all-in-one integrated features, outstanding system performance, 6 GigE with 4 M12/RJ45 IEEE 802.3at PoE+, excellent mobile availability, easy-swap PCI/PCIe x16 expansion, flexible expansion features, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and rugged reliability, Vecow ECS-9200 Series Fanless Embedded System is your excellent solution for performance-driven real-time Industry 4.0 embedded applications.
