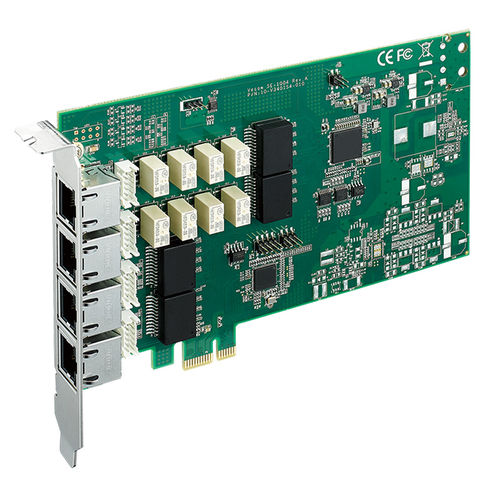

PCI Express interface expansion card SE-1014
EthernetLANindustrial

PCI Express interface expansion card - SE-1014 - Vecow Co., Ltd. - Ethernet / LAN / industrial
PCI Express interface expansion card - SE-1014 - Vecow Co., Ltd. - Ethernet / LAN / industrial
PCI Express interface expansion card - SE-1014 - Vecow Co., Ltd. - Ethernet / LAN / industrial - image - 2
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Bus
Ethernet, LAN
Applications
industrial

Description

Intel® Ethernet Controller I210 supports full-featured LAN functions, up to 1000Mbps data rate All-in-one, fully-integrated single-chip GigE switching solution with lower power consumption Industrial-grade, -40°C to 85°C Operating Temperature PCI Express x1 Interface Supports hardware LAN Bypass mode IEEE 1588 Precision Time Protocal (PTP) & IEEE 802.1AS Precision Time Synchronization compliant IEEE 802.3az Energy Efficient Ethernet (EEE) compliant IEEE 802.1Qav traffic shaper compliant Up to 9728 bytes Jumbo Frame Link Aggregation (LAG) Powered by Intel® Ethernet Controller I210, 4-port Gigabit LAN Switch/IEEE 802.3at PoE+, supports LAN bypass mode, Industrial-grade -40°C to 85°C Operating Temperature, Vecow SE-1000 series expansion card is your flexible solution for Intelligent Surveillance, In-Vehicle Management, ITS (Intelligent Transportaiton System), Industrial Ethernet, Mobile DVR/NVR or any industrial-grade networking applications.
