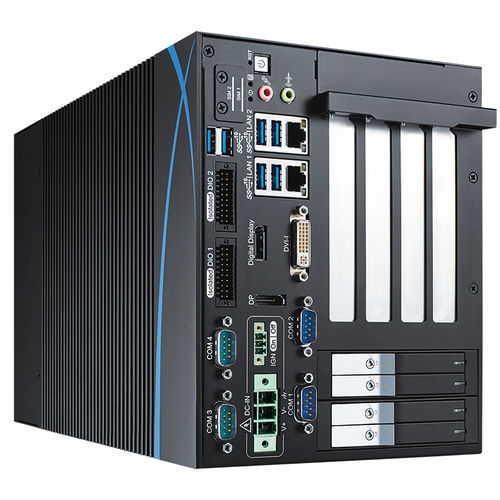

Fanless computer RCX-1000

embeddedwall-mountedIntel® Xeon

Features - 8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset - 4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC) - 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer - Rugged & Fanless design, -40°C to 75°C operating temperature - Multiple DVI-I and DisplayPort display interface, up to 3 independent HD displays - 2 independent GigE LAN, iAMT 12.0 supported - 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS - 4 front-access 2.5" SSD trays, RAID 0, 1, 5, 10 supported - 3 PCI/PCIe slots, max 300W Power Budget for independent graphics operation - 32 Isolated DIO, 4 COM RS-232/422/485 - 2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E - 6V to 36V DC Power Input with 80V Surge Protection - Configurable Ignition Power Control Powered by 9th/8th generation 8 cores Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh/Coffee Lake), and Intel® C246 chipset, 2 GigE LAN support iAMT 12.0, multiple PCI/PCIe expansion slots, 4 front-access SSD trays, 2 SIM sockets, 6 USB 3.1 Gen 2 sockets, 2 M.2 slots, 4 COM RS-232/422/485, 32 Isolated DIO, rugged, high-performance, flexible, expandable, max 300W power budget for independent graphics operation, Fanless -40°C to 75°C operating temperature, Vecow RCX-1000 Fanless Robust Computing System is your rugged solution for Machine Vision, Deep Learning, Robotic Control, Intelligent Surveillance, Factory Automation and any performace-driven embedded applications in harsh environments.
