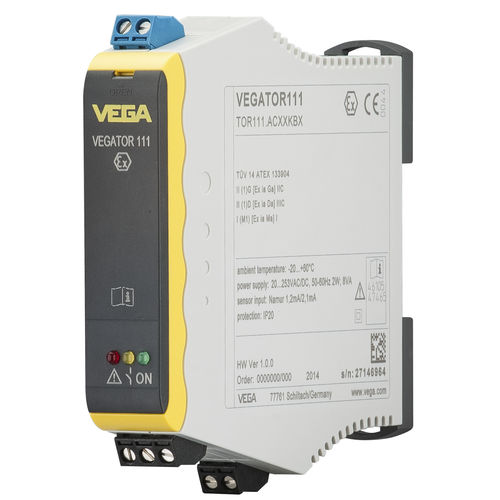

Single-channel signal conditioner VEGATOR 111

DIN railfor level sensing

The VEGATOR 111 is a signal conditioning instrument extensively sued for level detection for vibrating level switches VEGASWING, VEGAVIB and VEGAWAVE with electronics version according to NAMUR (IEC 60947-5-6). The instrument enables to solve simple control tasks. The typical application of the instrument includes monitoring functions such as overflow or dry run protection. It is available with an optional false signal output. The instrument provides 1 x sensor input NAMUR (IEC 60947-5-6) input, 1 x relay output (SPDT) output and optionally 1 x fail safe relay output (SPDT). The instrument supports carrier rail mounting 35 x 7.5 according to EN 50022 and optional SIL qualification up to SIL2. The comprehensive monitoring detects short-circuit and line break of the measuring cable and interferences in the sensor. Simple and comfortable SIL and WHG function test is done by means of test key. Simple installation is enabled through carrier rail mounting as well as detachable, coded terminals
