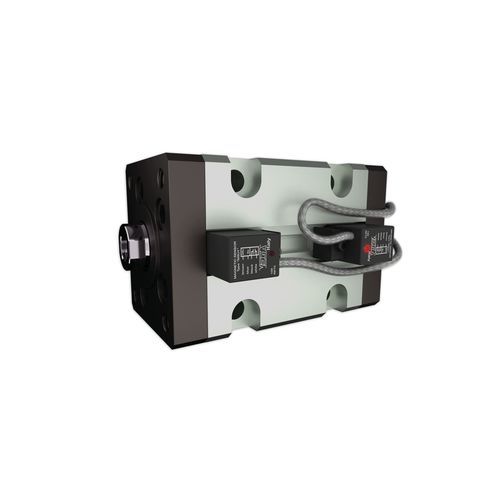

Hydraulic cylinder V220CC

with piston roddouble-actingsteel

The V220CC series includes long-stroke compact hydraulic cylinders with a linear movement, an aluminum alloy body and a single rod-end (no passing-through rods). The standard version includes piston bores from 32 to 100 mm, and strokes from 20 to 350 mm. The cylinder body is made of 7075 aluminum alloy, closed by two steel flanges. The front flange sealing system includes one scraper, 3 bush guides, and 2 Viton O-Rings. These components allow the cylinder sealing system to last over long periods of time. Vega Cylinders manufactures compact hydraulic cylinders for molds, and the main application of V220CC cylinders is moving components such carts, pins, and plugs, that might produce undercuts in plastic injection molds. The body of these cylinders is made of 7075 aluminum alloy, and it’s closed by 2 steel flanges. Thanks to their line fixings, these cylinders can be installed by means of passing-through holes by according to their lengths, or by means of pinned holes and a key. These double-acting hydraulic cylinders features the very high resistance and durability of alloy cylinders with the lightness and versatility of aluminum cylinders. Another strength of V220CC cylinders is their short delivery time and their simple customization according to our customers’ needs. They are compatible with ISO VG 46 mineral oils.
