Radar sensor for continuous level measurement of liquids
For aggressive liquids or under hygienic requirements
The front-flush mounting of the encapsulated antenna system ensures optimum cleaning even with strict hygienic requirements.

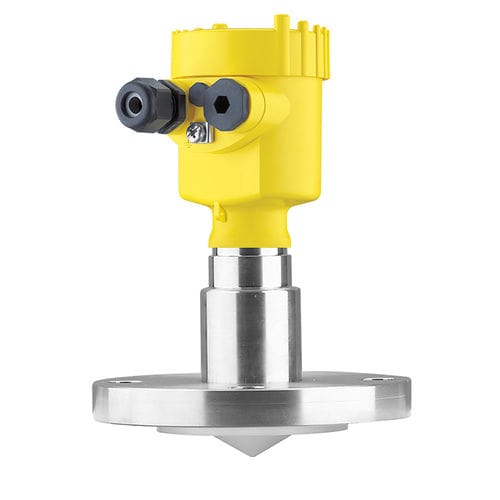

The VEGAPULS 63 is a radar sensor for continuous level measurement of aggressive liquids or with hygienic requirements. It is suitable for applications in storage tanks, process vessels, dosing vessels and reactors. The encapsulated antenna system of VEGAPULS 63 protects the VEGAPULS 63 against pollution and ensures a maintenance-free permanent operation. The front-flush mounting ensures an optimum cleanability even with high hygienic requirements.
Your benefit
Exact measuring results independent of process conditions
High plant availability, because wear and maintenance-free
Maintenance-free operation through non-contact measuring principle
Measuring range - Distance
35 m
Process temperature
-196 ... 200 °C
Process pressure
-1 ... 16 bar
Accuracy
± 2 mm
Version
hygienically encapsulated horn antenna
Materials, wetted parts
PFA
PTFE
316L
TFM-PCTFE
TFM-PTFE
Flange connection
≥ DN50, ≥ 2"
Hygenic fittings
Clamp ≥ 2", DN50 - DIN32676, ISO2852
Slotted nut ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
hygienic fitting with tension flange DN32
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
Hygienice flange connection ≥ DN50 DIN11864-2
Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A
DRD connection ø 65 mm
SMS 1145 DN51
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
