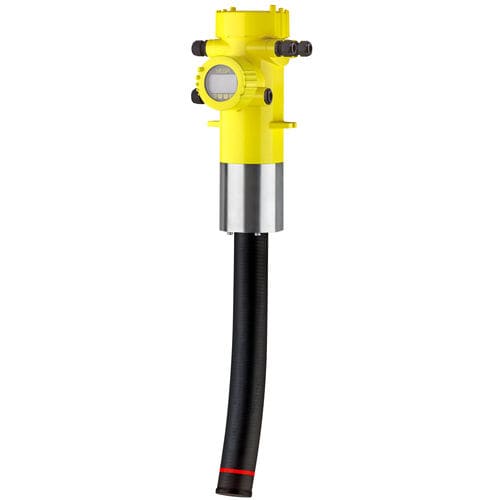

Radiometric level sensor FIBERTRAC 32

for liquidsbulk solidsHART

Radiometric sensor for continuous level and interface measurement Flexible detector with higher accuracy Application area The flexible detector is used on round vessels and vessels with conical outlet and is suitable for measurement of liquids, solids, slurries and suspensions. Due to the larger scintillator cross-section, FIBERTRAC 32 has higher sensitivity and accuracy. FIBERTRAC 32 is a radiation-based sensor for continuous measurement of liquids and bulk solids. It is suitable for level and interface measurement under extreme process temperatures, in aggressive media or under problematic product properties. Due to the bigger flexible plastic sensing element, FIBERTRAC 32 offers even quicker and more reliable measurement results, also under the harshest application conditions. Your benefit Simple mounting on round and conical vessels through flexible detector High plant availability through non-contact measurement Efficiency due to the large measuring range Measuring range - Distance 7 m Process temperature - Process pressure - Accuracy ± 0.5 % Density Density Materials, wetted parts No wetted material Threaded connection Mounting from outside via supplied mounting brackets Seal material no media contact Housing material Aluminium Stainless steel (precision casting) Protection rating IP66/IP67 Output Profibus PA Foundation Fieldbus 4 … 20 mA/HART - four-wire Ambient temperature -20 ... 50 °C
