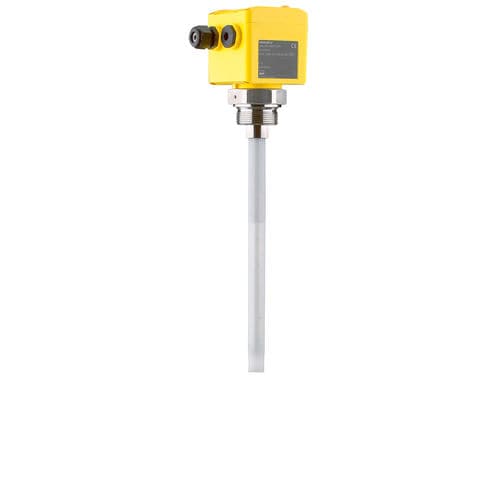

Capacitive level switch VEGACAP 27

for liquidsfor hygienic applicationsaluminum

Adjustment-free, capacitive rod probe for level detection of adhesive products Rod probe, fully PTFE or PFA insulated Application area For liquids, also in non-conductive containers, Sensor length up to 4 m The VEGACAP 27 is an adjustment-free, capacitive level sensor for liquids. Typical applications are overfill and dry run protection for adhesive as well as conductive liquids. The probe operates in liquids with a dielectric constant from 1.5. Your benefit Long lifetime and low maintenance requirement through robust mechanical construction Minimum time and cost expenditure thanks to simple setup without medium Exact switching point even with strong buildup Process temperature -50 ... 200 °C Process pressure -1 ... 63 bar Version PTFE insulation Materials, wetted parts PTFE 316Ti (1.4571) Steel Threaded connection ≥ G1, ≥ 1 NPT Hygenic fittings Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ 2", DN50 - DIN 11851 Seal material no media contact Housing material Plastic Aluminium Protection rating IP66/IP67 Output Relay (DPDT) Ambient temperature -40 ... 80 °C Overfill protection WHG
